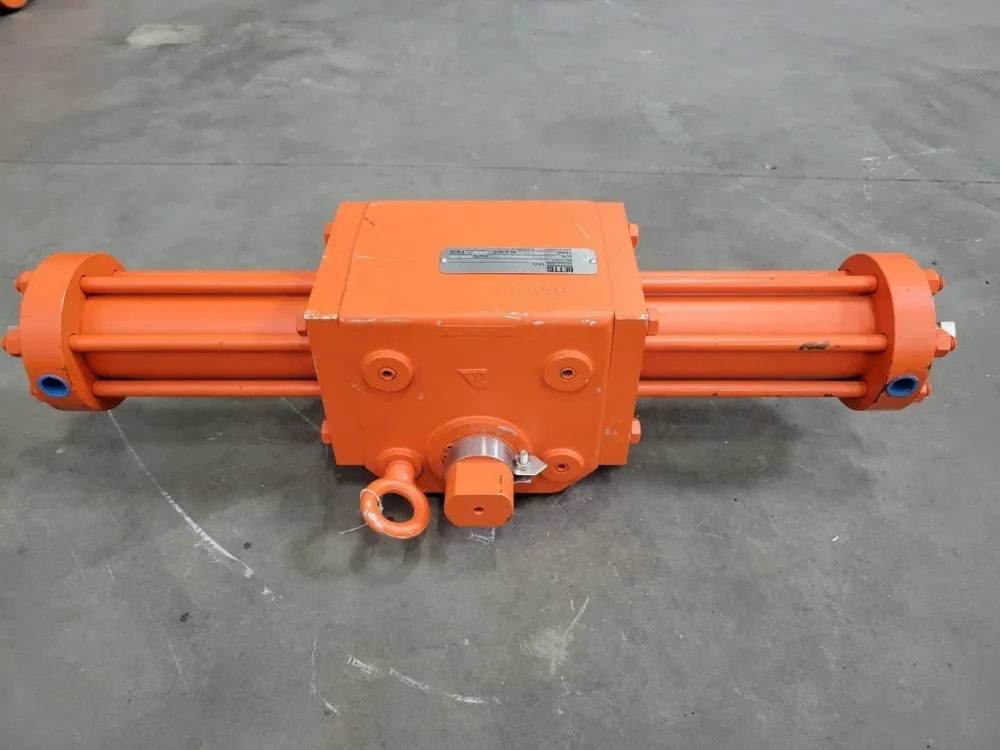

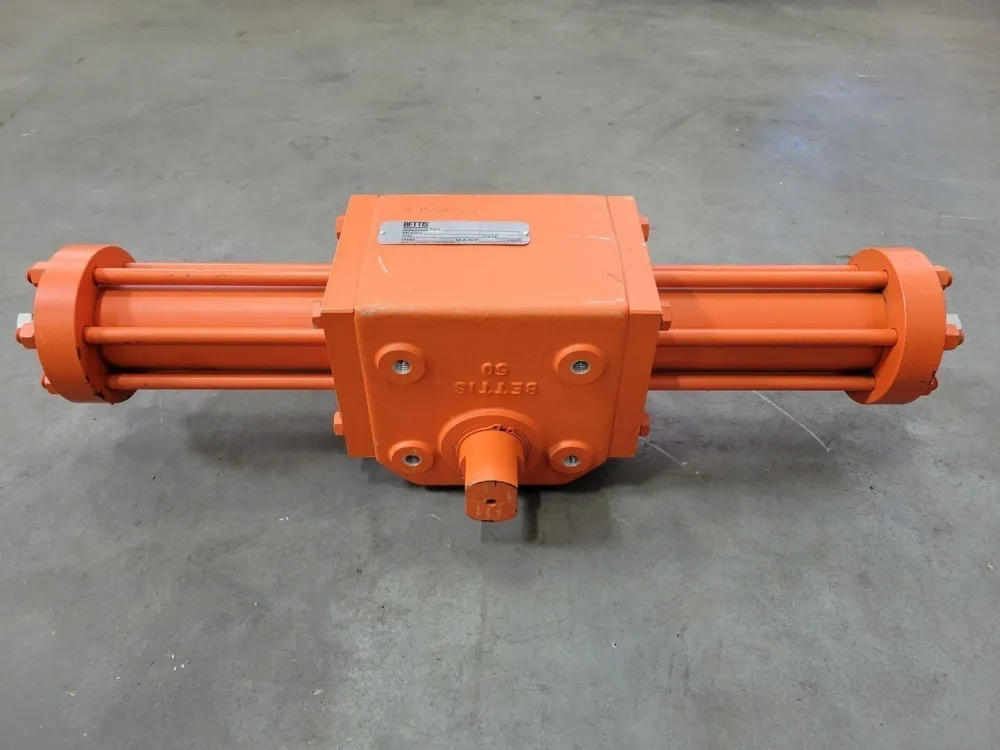

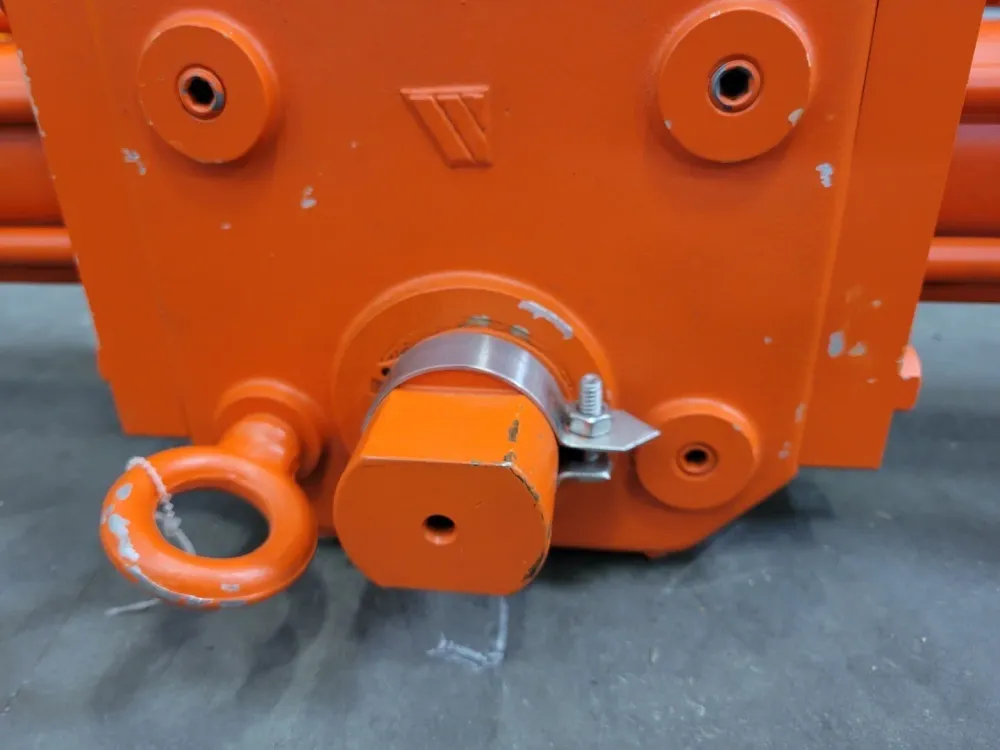

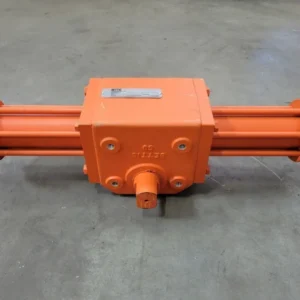

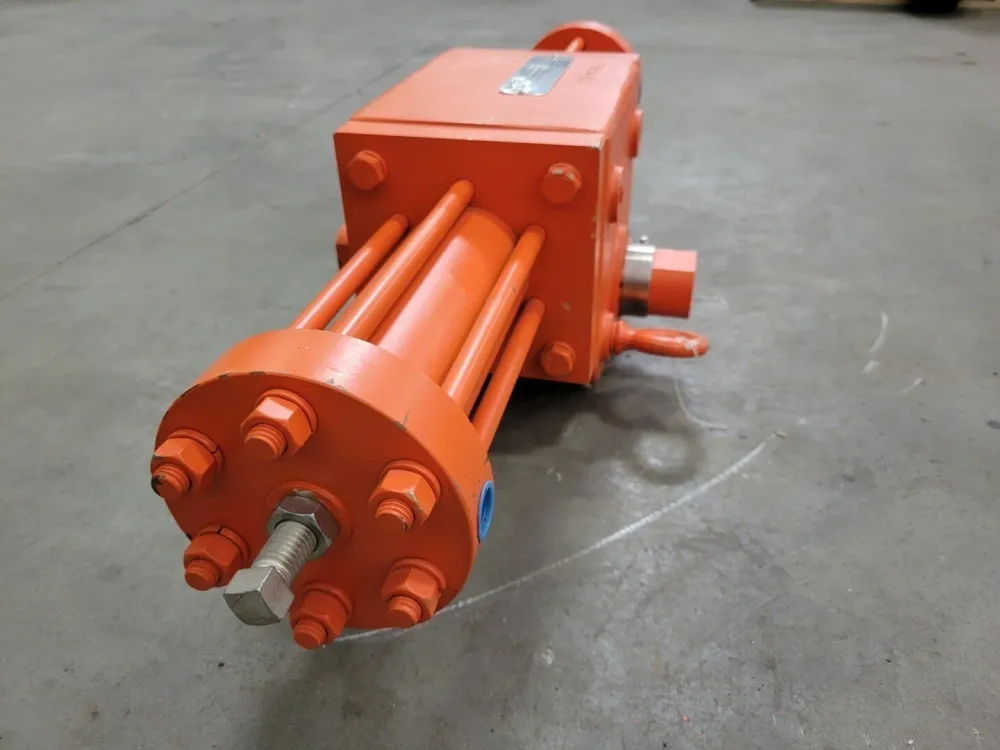

Name: Rubber silentblok E-SERIES Hydraulic Quarter-Turn Valve Double-Acting Operator 50SH - Voertuigonderdelen.com
SKU: 2670E-AB9972F4D066
Price: 438.00 EUR
Availability: InStock

E-SERIES Hydraulic Quarter-Turn Valve Double-Acting Operator 50SH ✔ Hoogwaardige beveiligingssystemen ✔ Eenvoudige zelfinstallatie 🛒 Kies voor gemoedsrust

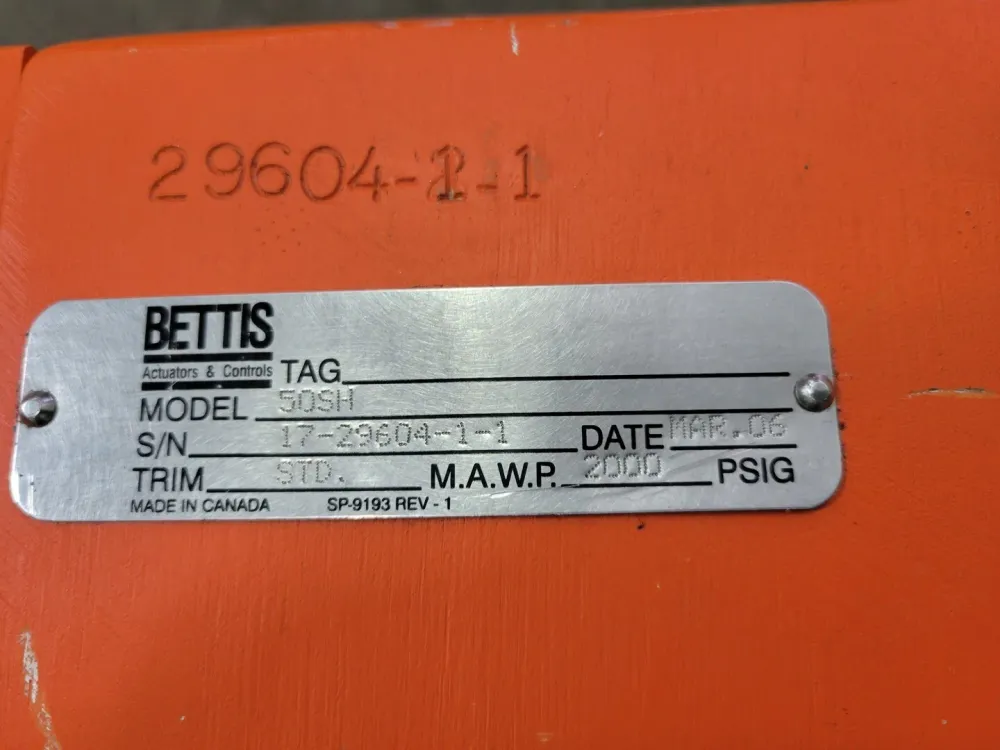

Model	50SH
S/N:	17-29604-1-1
Made In	CANADA
Condition	Used

Other Specifications

Test Pressure: 2000 psig
Maximum Allowable Working Pressure: 2000 psig
Operator Size: 50SH
Actuator Displacement: 22.1 cubic in.
Nominal Stroke: 4.5 in
Cylinder Bore: 2.5 in
TRIM: STD.

End Position Output Torque at Operating Pressure of *
500 (psig): 8,850 lb-in
750 (psig): 13,300 lb-in
1000 (psig): 17,700 lb-in
1250 (psig): 22,000 lb-in
1500 (psig): 22,000 lb-in
2000 (psig): 22,000 lb-in

Introduction
Bettis E-Series offers a comprehensive line of quarter-turn hydraulic operators with torque outputs from 500 lb-in to 1,500,000 lb-in by incorporating field getest accessories, and being readily adaptable t
