Radiator Intermatic – GM40AV – 40 A, Autovoltage General Purpose Time Control

Intermatic – GM40AV – , Autovoltage General Purpose Time Control ● Eenvoudige zelfinstallatie ● Directe mobiele meldingen ▶ Directe bescherming tegen diefstal

Spec SheetInstall Manual

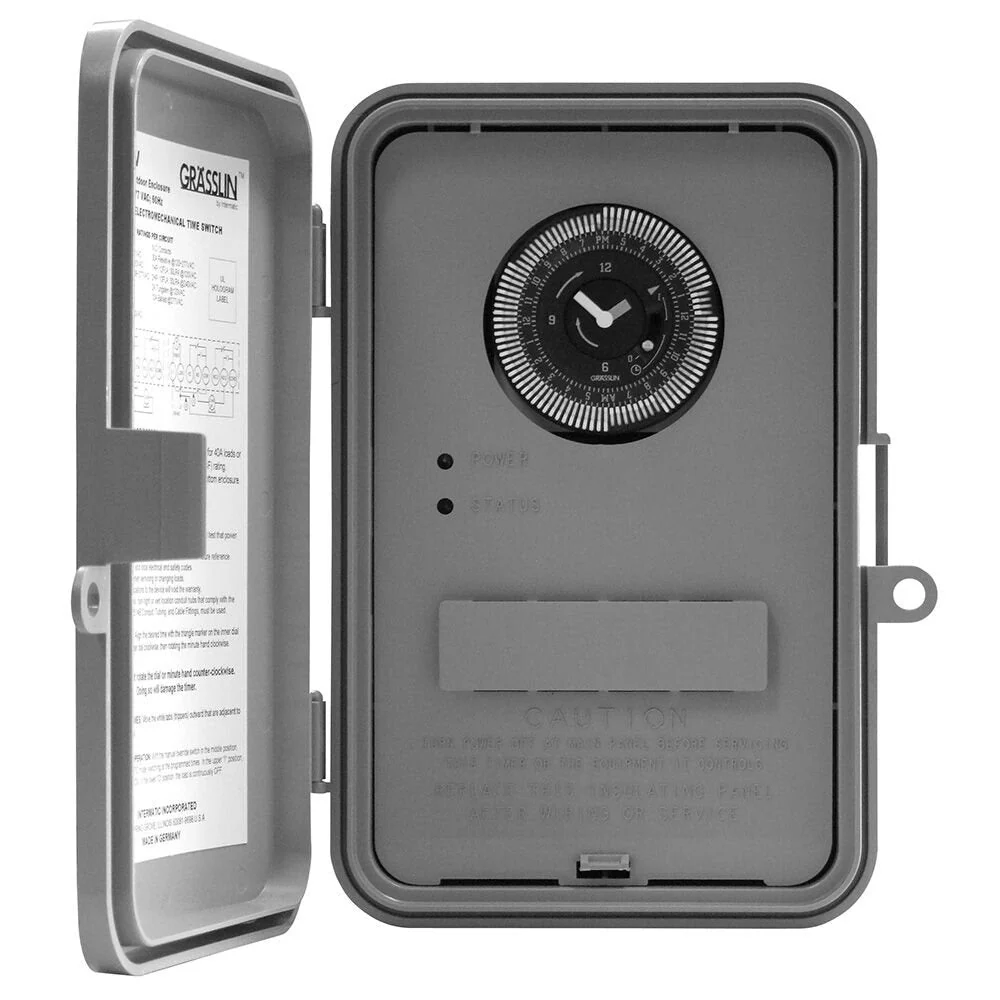

The GM40AV Time Switch is a geschikt voor veel, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).

Features:

• Autovoltage selection 120 VAC-277 VAC
• Captive trippers – trippers cannot be lost
• 40 A rating
