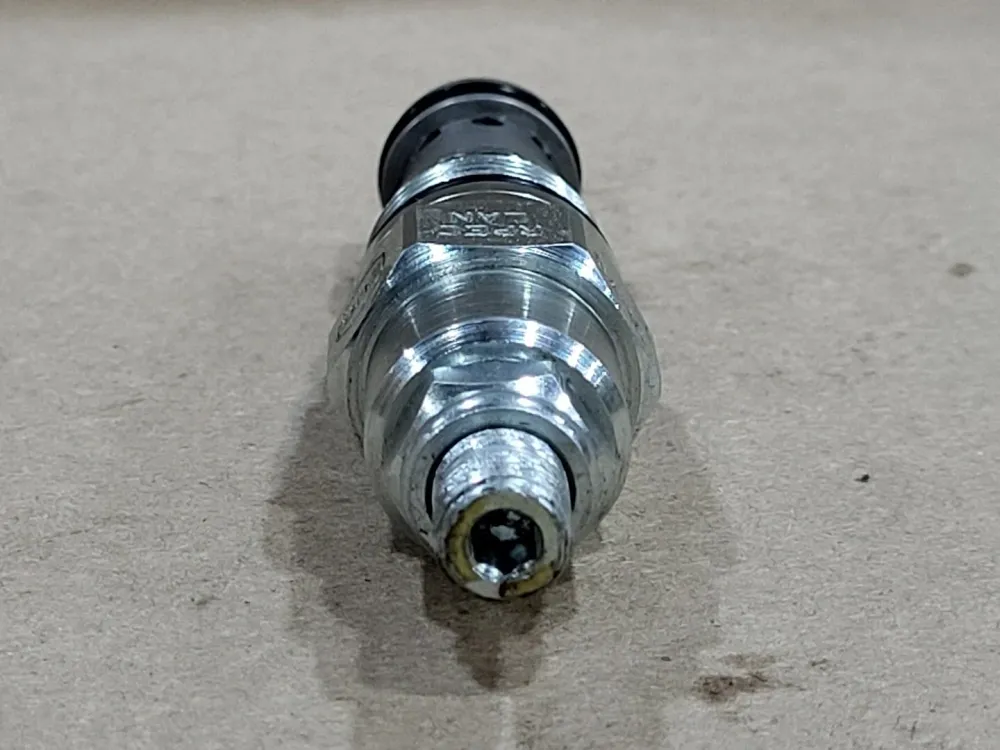

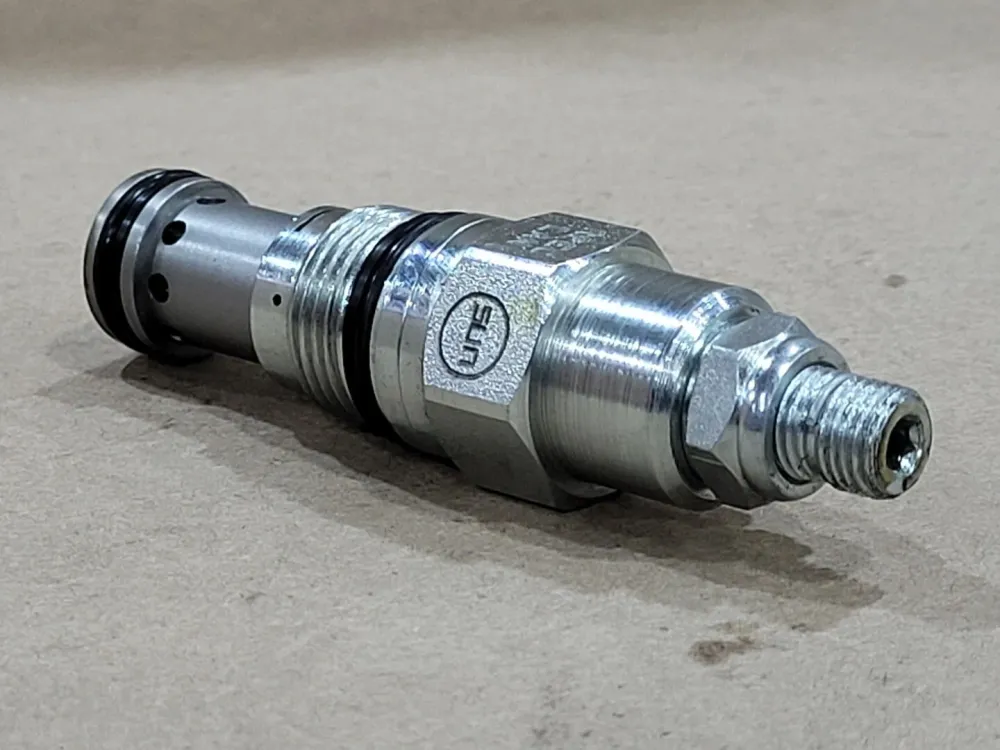

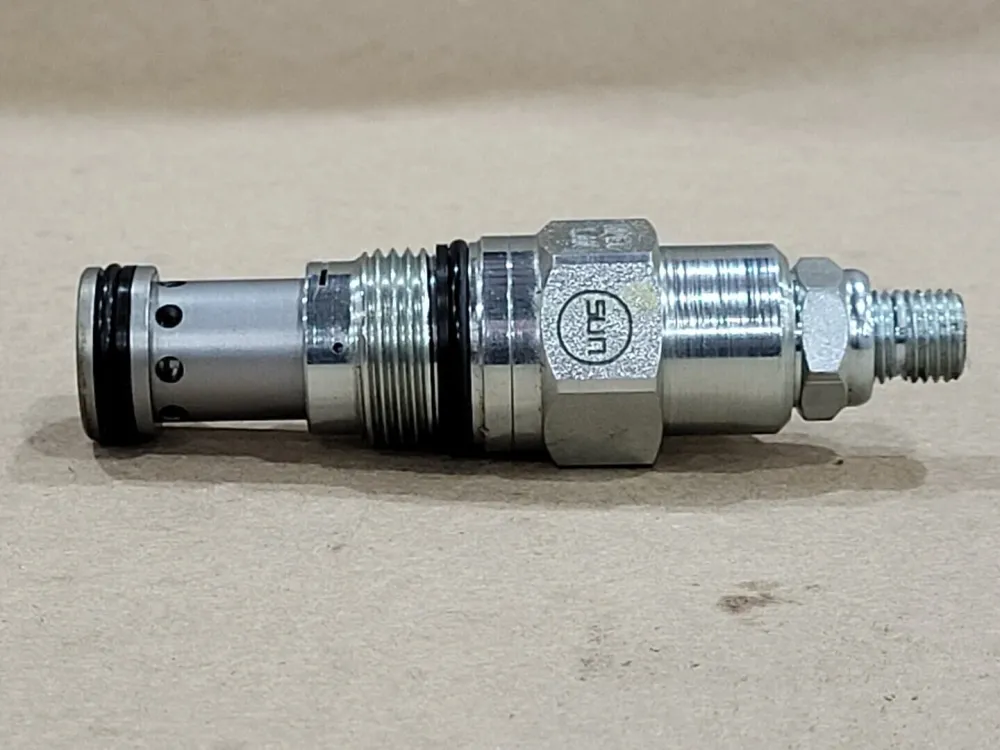

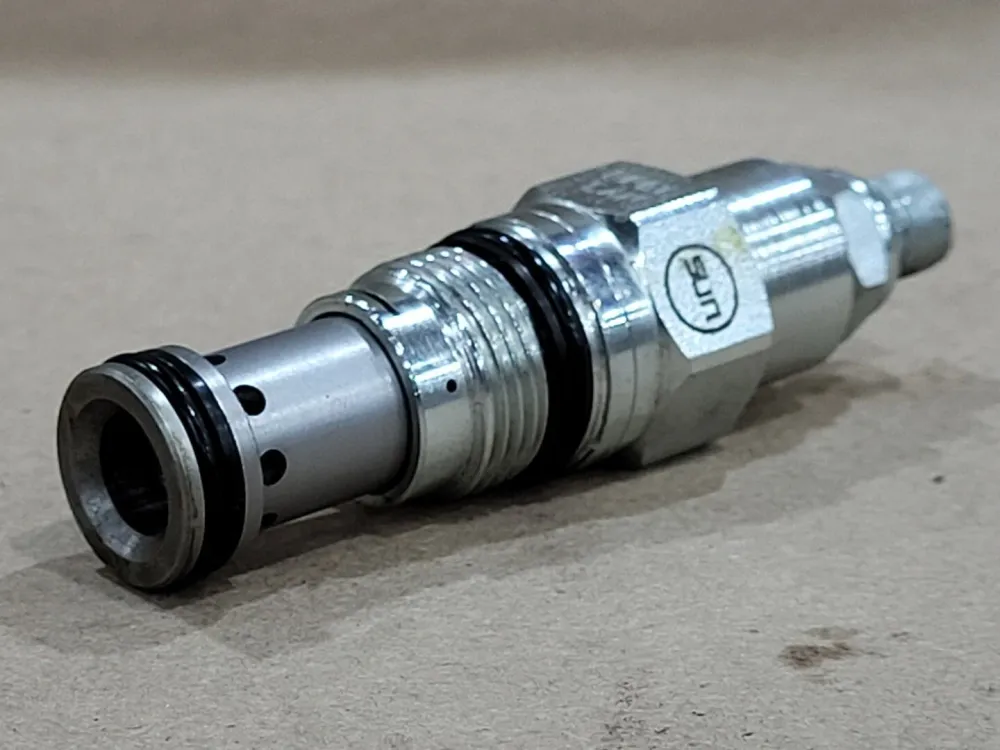

Pilot-Operated Balanced Piston Relief Valve RPEC-LAN – Directe Montage
| Model | RPEC-LAN |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Port: 2 Cavity: T-10A Series: 1 Action: Direct-Acting Capacity: 25 GPM Maximum Operating Pressure: 5000 psi Response Time-Typical: 10 ms Adjustment-No. of CW Turns from Min. to Max. Setting: 5 Valve Hex Size: 7/8″ Valve Installation Torque: 30-35 lbf ft. Adjustment Screw Internal Hex Size: 5/32″ Locknut Hex Size: 9/16′ Locknut Torque: 80-90 lbf in. |
