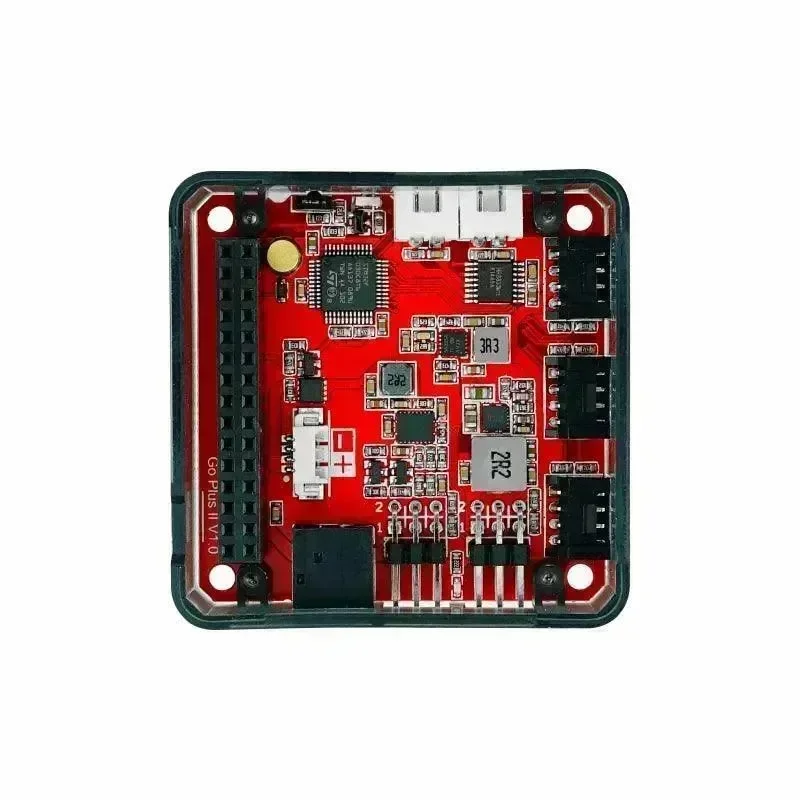

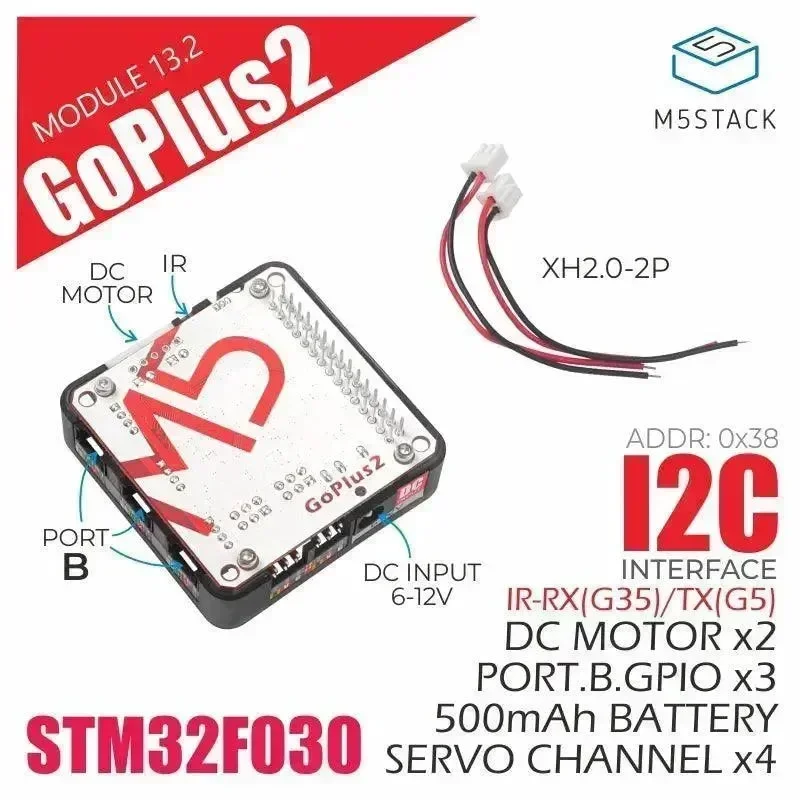

GoPlus2 is a stackable multi-functional motor and servo control module. The master control integrates the STM32F030C8T6 chipset. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. Three PORT-B interfaces(Analog Input, Digital Output, Numeriek Input) can be expanded. Built-in 500mAh battery and support infrared (IR) transmission and receive. In order to meet the requirements of a multi-channel interface power supply at the same time, a DC power interface is provided for the external power supply, battery can be charged through the M5Core with USB-C.
Communication protocol: I2C(0x38)
Note: This module has an I2C address conflict with the touch screen of the CORE2, so it cannot be used together.
Product Features
- 2x DC motor interface
- 4x Servo interface
- IR transmit & receive

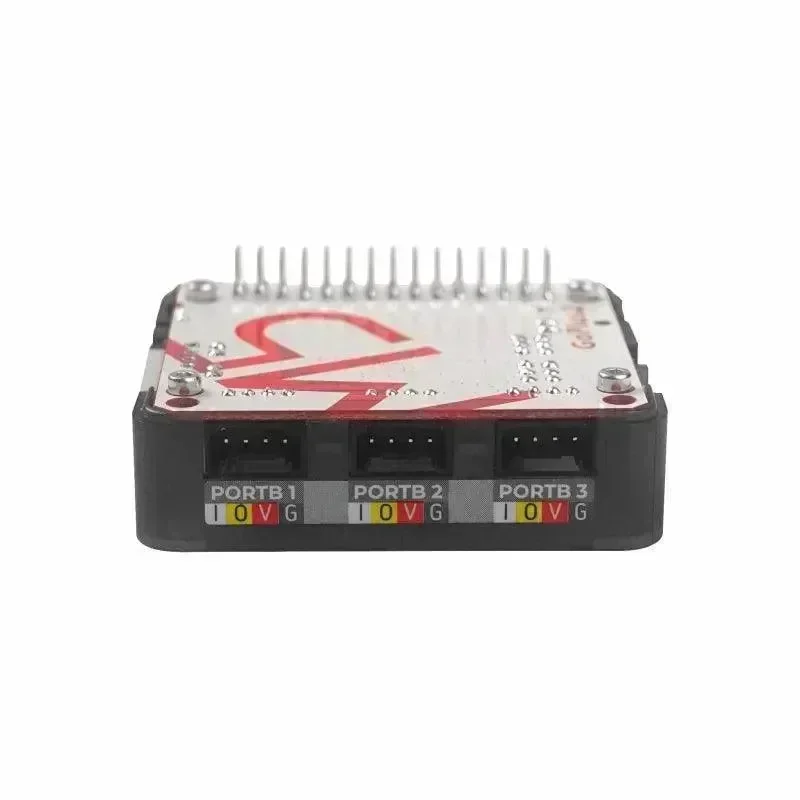

- 3x expand PORT B
- STM32F030C8T6
- Built in 500mAh battery
